Home Products Veria Quickmat
Single conductor

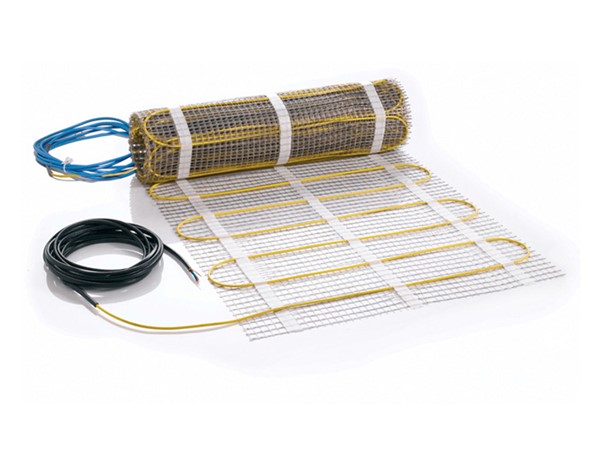

Veria Quickmat

Single conductor

Product features

  • 2.5mm installation height
  • Single conductor
  • Copper screen
  • Available in 100 W/m² and 150 W/m²
  • 12-year warranty
  • CE-marked in accordance with EN 60335-1 and 60335-2-96
Cable colour
Cable type
Conductor insulation
Deformation strength
Height
Length
Max. temperature
Outer cover material
Output per m2
Screen
Self-adhesive nylon net
Supply line
Tensile strength
Warranty
Width
Veria Quickmat Single conductor
Yellow
Single conductor
FEP
600 Nm
2.5 mm
1-20 m
120°C
PVDF
100 W/m2 and 150 W/m2 at 230 V
10 x 0.25 mm Cu
Yes
2 x 3 m
120 Nm
12 years
0.5 m
Product number Description Cover area Length x width
189B0100 Veria Quickmat 150, 75W 0,5 m2 1 x 0,5 m
189B0101 Veria Quickmat 150, 150W 1,0 m2 2 x 0,5 m
189B0102 Veria Quickmat 150, 225W 1,5 m2 3 x 0,5 m
189B0103 Veria Quickmat 150, 300W 2,0 m2 4 x 0,5 m
189B0105 Veria Quickmat 150, 450W 3,0 m2 6 x 0,5 m
189B0107 Veria Quickmat 150, 600W 4,0 m2 8 x 0,5 m
189B0108 Veria Quickmat 150, 750W 5,0 m2 10 x 0,5 m
189B0113 Veria Quickmat 150, 1500W 10,0 m2 20 x 0,5 m
Product number Description
189B9240 Depron panels, 33 mm - 40 pcs.
189B9242 Depron panels, 6 mm - 20 pcs.
189B9244 Depron glue, 1 kg.
189B9246 Depron glue, 5 kg.
189B4040 Veria Control B35
189B4050 Veria Control B45
189B4060 Veria Control T45
Title Download File type
Installation Guide Veria Quickmat 1.6MB .pdf
Fact Sheet Veria Quickmat 409.1KB .pdf

Easy installation

The heating cable is fastened to the self-adhesive net, which means that you won't have to worry about the proper distance between the cables or securing them the floor. All you have to do is unroll the heating mat, press and secure it to the substrate, and grout over the heating mat with a suitable and flexible grout.

Low installation height

When renovating an existing bathroom, kitchen, etc., you will often find that there is very little space for installing floor heating.

With an installation height of only 2.5 mm, the Veria Quickmat single conductor model is perfect for direct installation over your existing flooring, and with a new floor surface of tile, wood, laminate, etc.

Top-notch safety

The heating cable is equipped with a plaited copper screen, which, via the thermostat, is connected to the earth connection of your electrical installation. Should the cable break unexpectedly, the built-in screen connection will immediately shut down the system - without any risk to people or animals.

Select the correct output

For a wooden or laminate subflooring, as well as for a wooden and laminate floor covering, a maximum output of 100 W/m² is recommended.

For a concrete or tile subflooring, as well as for a regular or quarry tile floor covering, a maximum output of 150 W/m² is recommended.
